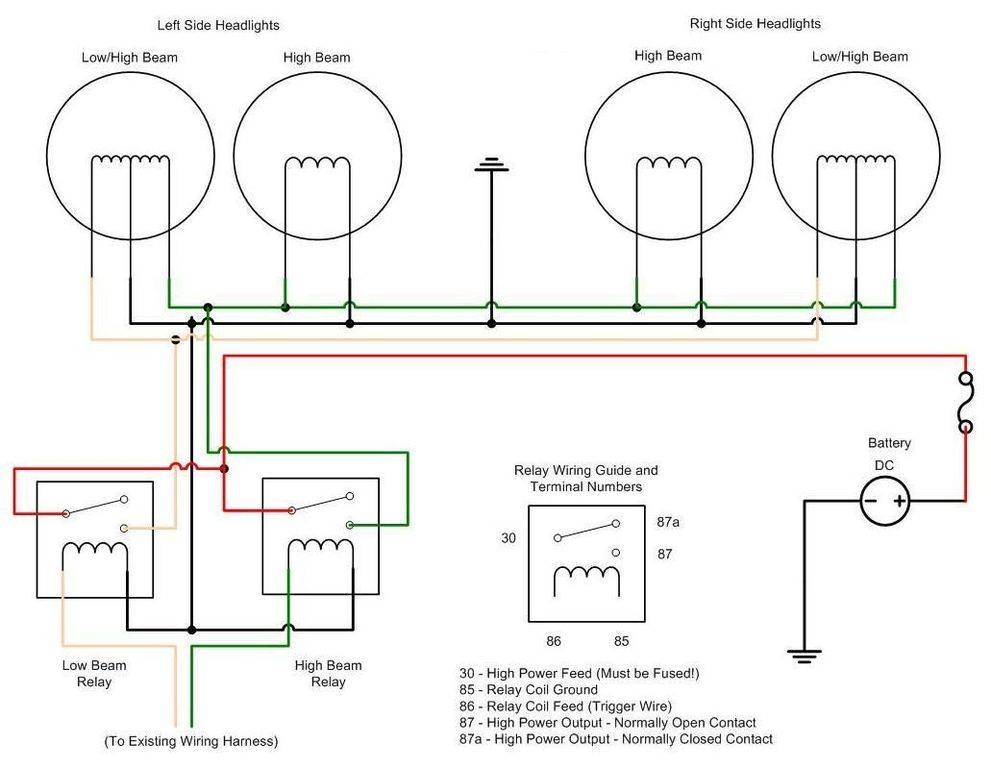

The electric system in your vehicle consists of the wiring terminals connectors switchback drivers regulators fuses and relay kits. Headlight relay wiring diagram the above circuit is a way to use existing headlight wiring to control 2 relays that can be placed close to the lights.
Super Simple Headlamp Circuit Upgrade For 240 Models
Wiring relays for headlights. Connect the relay plug to the vehicles factory headlight socket. Your vehicles wiring lighting accessories and other components are integral for the smooth functioning of your cars lights and signals. Wiring headlights and relays use the proper sized wire for your systems current draw fuses or circuit breakers must be used to keep your car or truck from burning to the ground in the event of a short. The main power from the battery feeding the fuse and relays should be a nice large gauge wire as indicated. Keep wires from rubbing and. Make sure to use only good quality components so that you get the best use out of your vehicles lighting system.
This is a h49003 12v headlight conversion wiring harness with high heat ceramic plugs for cars that have upgraded halogen or xenon h4 bulbs. These components work as the arteries and veins within your car to keep everything connected and. Keep wires from getting into moving parts of the fan or engine. So headlights overload the headlight switch and end up making the light dimflicker or turn off. Our kit includes separate relays for the high and low beams as well as upgraded gxl wire to. This video is a detailed walkthrough of the american autowire headlight enhancement relay kit.
Terminal 86 is the wire that used to run to the headlights its now the relay trigger wire one relay is dipped beam so connected to the dipped beam side of bulb and the dipped beam wire from the stalkswitch connects to terminal 86.
