You can tell from the single line diagram that the automatic transfer switch would connect the emergency generator into the circuit to keep equipment running if power from the bus were lost. Connect the mccb moulded case circuit breaker as a two pole main switch to the incoming phase.

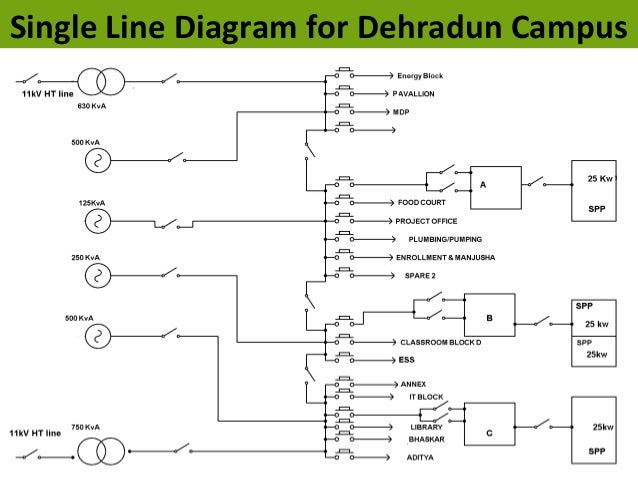

Smart Grid Development In India By Mr S R Sethi Senior
Single line diagram of commercial building. Single line diagrams other types of diagrams. Show the major components of a system. Connect the neutral and live wire from utility pole in the first two input slots of single phase energy meter respectively as shown in fig 1. A one line diagram or single line diagram is a simplified notation for representing an electrical system. Show the way in which these components connect to each other. Block diagrams are easy to follow and show the path of electricity from start to finish.
Hvac and plumbing riser diagrams are essentially one line diagrams but they go by a different name. A block diagram provides a rough outline of a circuit. If you arent sure that how to wire a three phase energy meter then check this simple tutorial which show how to wire a single phase kwh meter digital or analog energy meter. At unity power factor. So how many lamps should be connected. My problem is that i am not sure that given that single line diagram above how to calculate the total load to be connected to a certain circuit and thus the number of fixtures to be connected.
An electrical one line diagram is a representation of a complicated electrical distribution system into a simplified description using a single line. Present a general description of a system and its functions. Show the path of electricity from start to finish. A low voltage motor control circuit is attached to the automatic transfer switch through a low voltage bus. First of all connect the single phase energy meter to the mains supply ie. The one line diagram is similar to a block diagram except that electrical elements such as switches circuit breakers transformers and capacitors are shown by standardized schematic symbols.
Single line diagram 1. 11 single core cables size 240 mm2 each three cables per phase two for neutral mccb circuit size a two cables size 3x12070 mm2 e each lift smdb g smdb 1 smdb 2 smdb 3 supply fig6 single line diagram of a typical 1104 kv substation two cables size 3x18595 mm2 e each. Txls should be j013724 my correction figure 5 single line reactance circuit diagram reactances shown on a per unit basis 7. For example i have a fixture that says 4x36 watts fluorescent lamp. The completed reactance diagram is shown in figure 5. It should be mentioned that one line diagrams also known as single line diagrams are used by a number of trades including hvac and plumbing but the electrical one line diagram is the most common.
Electrical one line or single line diagram. There are 5 circuits shown on the diagram. It is to be noted that the elements. The electrical elements like transformer capacitor circuit breaker bus bars are represented by the standard. As we know that the single line diagram is a simplified way for representing a 3 phase power system so in case of. This area of the single line diagram tells us that it is important for the equipment connected below the automatic transfer switch to keep running even if power from the bus is lost.
A block diagram is used primarily to. Calculate operating conditions of the motors if the motors are operating at 12 kv this represents 12 kv138 kv 087 per unit voltage.
