The dual led allows you to illuminate part of the switch with your dash lights. 5 pin relay wiring diagram 5 pin relay wiring diagram 5 pin relay wiring diagram 87a 5 pin relay wiring diagram driving lights every electric structure is composed of various unique components.
Winch Rocker Switch Wiring Diagram Wiring Diagram

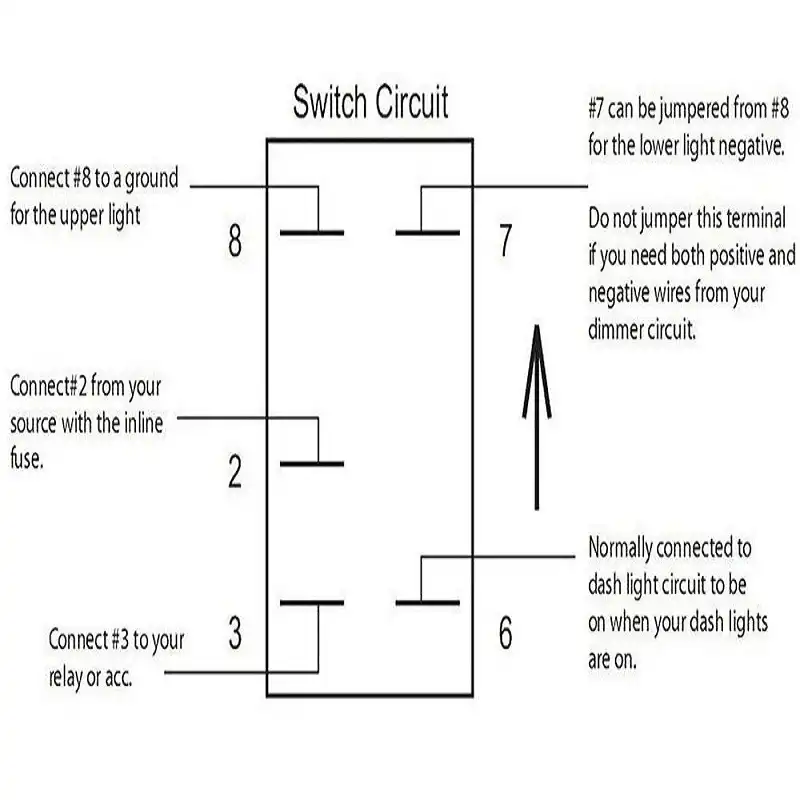

Illuminated 5 pin rocker switch wiring diagram. The diagram below represents the schematic diagram for a spst rocker switch. And you can because its so simple and youll find everything you need to know about it right. Each component should be placed and linked to different parts in specific way. The wiring diagram to the right shows how the contacts and lamps are wired internally. Now that you have an idea how rocker switches are constructed internally lets go over the wiring diagram so that you will now how to connect a rocker switch to a circuit. Illuminated rocker switch wiring diagram 120v illuminated rocker switch wiring diagram 12v illuminated rocker switch wiring diagram 240v illuminated rocker switch wiring diagram every electrical structure consists of various diverse pieces.
You might want to review the article on toggle switch wiring before proceeding. Also relays can be used to switch higher draw accessories to reduce switch load and voltage drop. Hey guys just bought a marine raider illuminated 5 pin 3 position toggle switch and it didnt come with a wiring diagram and i cant seem to find one anywherebuy these onoff switches from oznium. Rocker switch wiring diagram. It really is supposed to help all of the common consumer in creating a suitable system. Below youll find a basic onoff rocker switch wiring diagram as well as an easy to understand illuminated rocker switch wiring diagram so no matter what your needs after reading this youll want to put switches on all your leds by yourself.
In this video i show you how to wire a dual led rocker switch. As shown below rocker switches have 3 electrical connections. The vjd1 rocker switch has 7 prongs on the back called terminals. This dpdt illuminated rocker switch has two dependent lamps one top and one at the bottom. Otherwise the structure will not work as it ought to be. In this video we are giving a tutorial on how to wire a rocker switch with led 6 and 7 pin wiring diagrams to control a linear actuator as well as showing how exactly a rocker switch works.
Navanc rocker switch here. We have a variety of switches rocker switches toggle switches and more. An illuminated rocker switch is like a spst toggle switch with an extra terminal which allows the light to work. 5 pin rocker switch wiring diagram. With just a few small jumpers our switch selection can be used for a multitude of different functions. Quality assurance momentary carling lighted 5 terminals 5 pin rocker 5 pin rocker switch wiring diagram wiring diagram comes with several easy to stick to wiring diagram directions.
This makes it very easy to see your switches at night.
