The hydramax installation begins with the removal of the front bearing retainer at the 2 oclock position which is where the release bearingslave cylinder will be secured. How to install ram hydraulic release bearing duration.
Heil Hydra Max Setting Up Your Hydraulic Release Bearing
How to install a hydraulic throwout bearing. Petes garage 29270 views. Hydraulic throwout bearing bellhousing and transmission duration. B to install the hydraulic release bearing you first need to replace the transmission bearing retainer bolt in the 2 oclock position with the supplied stud. Replace it with the enclosed stud as needed. Step 1 screw the adjusting screw all the way into the bearing assembly. Part 2 address how to shim the throwout bearing and run the hydraulic lines.

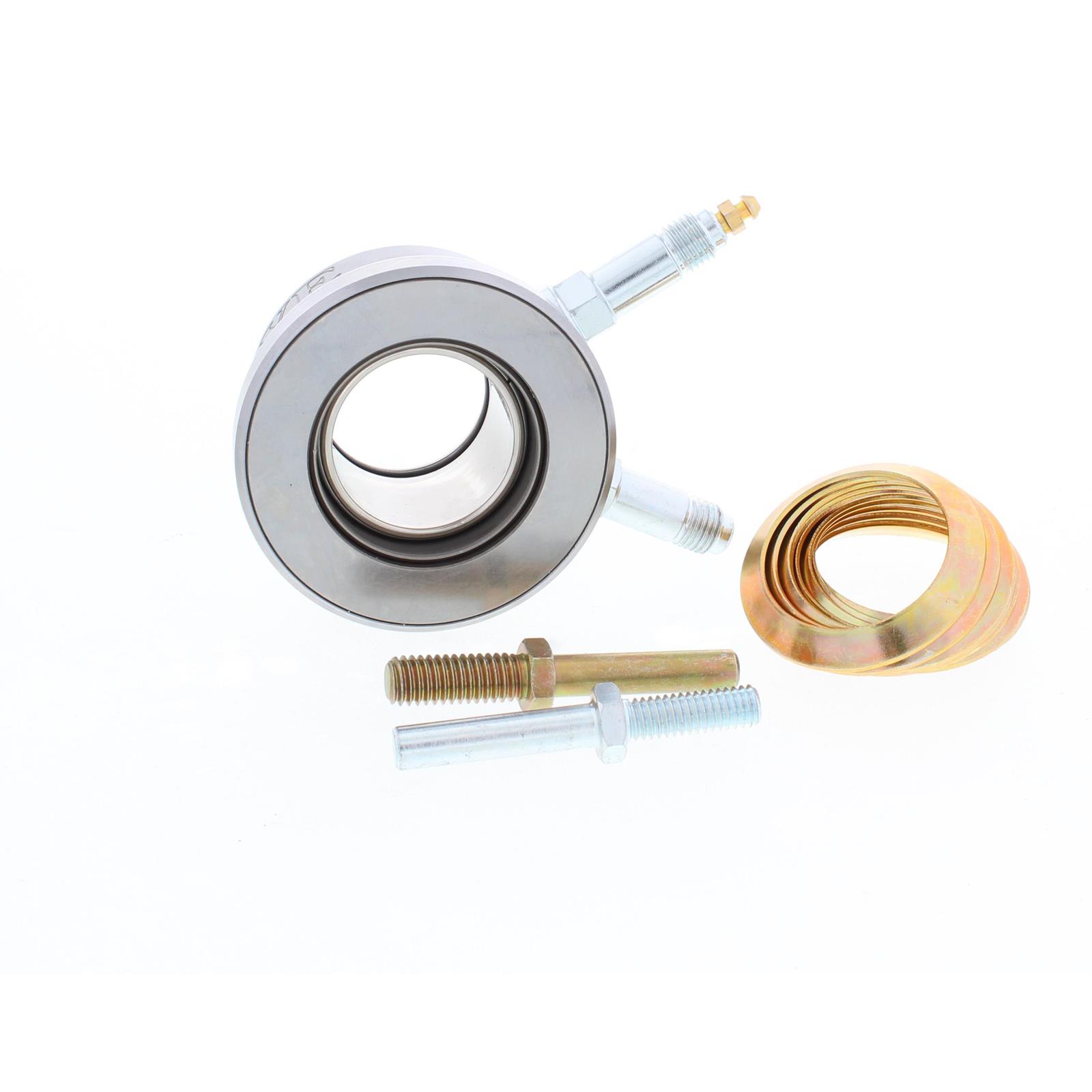

Then subtract 0100 inch of minimum clearance and the result of 0040 inch is the thickness needed for the shim stack height. Slip the bearing assembly onto the input shaft collar on the transmission. Be sure the tapered side of the adjusting screw goes on the transmission collar to seat against the base of the collar. The inlet and bleed fittings should be pointing towards the fork opening on the bellhousing. Adding a shim of no more than 0040 inch will create the minimum 0100 inch free play clearance. Installing the hydraulic bearing remove the transmission bearing retainer bolt from the lower left side opposite the fork opening window of the bellhousing.
Hydraulic release bearing set up in this example subtracting a minus b equals the initial clearance of 0140 inch. C the release bearing then simply slides onto the bearing retainer shaft. Hydraulic throwout bearing installation mystery explained.
