This heavy duty switch mounts in a83 x 148 inch hole and it has 14 quick connect terminals. This switch can be used for a 12v dc or a 24v dc brushed motor.
Dc Motor Reversing Switch
Dc motor reversing switch. They convert ac input voltage into dc output voltage and control the speed of permanent magnet dc motors. Industec wired 20 amp 12v dc motor polarity reversing rocker momentary automatic reset switch. Industec toggle switch 3 position polarity reversing dc motor control maintained 12v 250 quick connect 6 pin double pole double throw spade plug wwires 50 out of 5 stars 2 1480 14. Internal gasket keeps water dust out of contacts. Get it as soon as fri jul 10. Free shipping on your first order shipped by amazon.
Bandc momentary motor polarity reverse reversing rocker switch control dpdt dc 12v or 24v. 45 out of 5 stars 100. Housed in a durable steel enclosure. Get it as soon as tue jul 21. When the switch lever is in the top position the motor rotates forward. Reversing enclosed ac to dc motor speed controls use these controls with motors that run forward and backward such as motors for conveyor belts.
If your motor rotates in the opposite direction than you expected or wanted simply reorient the switch in your hand so that lever is facing the bottom and then toggle the lever to the top. The switch is a dpdt so it functions as a reverse polarity switch on the motor. Only 15 left in stock order soon. Black body and button. Totot 1pc dc 6 28v 6v 12v 24v 28v pwm motor speed controllers speed adjustable reversible switch 1203bb dc motor driver reversing. By reversing polarity on a brushed 1224v dc motor the motor will reverse and forward accordingly.
Industec toggle switch 3 position polarity reversing dc motor control maintained 12v 250 quick connect 6 pin double pole double throw spade plug wwires 50 out of 5 stars 2 1480 14. Connections in a dpdt switch resulting in a motor going forward. Free shipping on your first order shipped by amazon. Industec 30 amp dpdt rocker switch polarity reverse dc motor control maintained latch lock 12v 3 position double pole double throw. Gama electronics 30 amp toggle switch 3 position polarity reversing dc motor control momentary. Simply connect power and ground and two dc motor leads and the switch will reverse the motor direction.

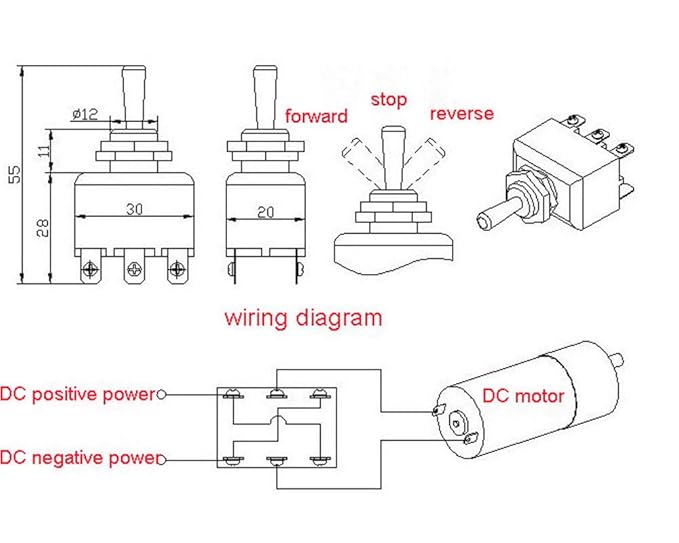

Reversing dc motors requires a specific type of switch namely a dpdt double pole double throw switch center off wired in what is known as an h bridge configuration pictured at right so called because the current flow looks like the letter h when you look at a schematic diagram. Center position of the switch is off. Get it as soon as tue jul 21. Free shipping on your first order shipped by amazon.
