Instead of measuring the engines ability to create pressure compressed air is introduced into the cylinder through the spark plug hole. A leak down test uses a set of gauges and pressurizes the cylinder with air and measures how much of that air is escaping.
Cylinder Leak Down Pressure Test Questions Ih8mud Forum

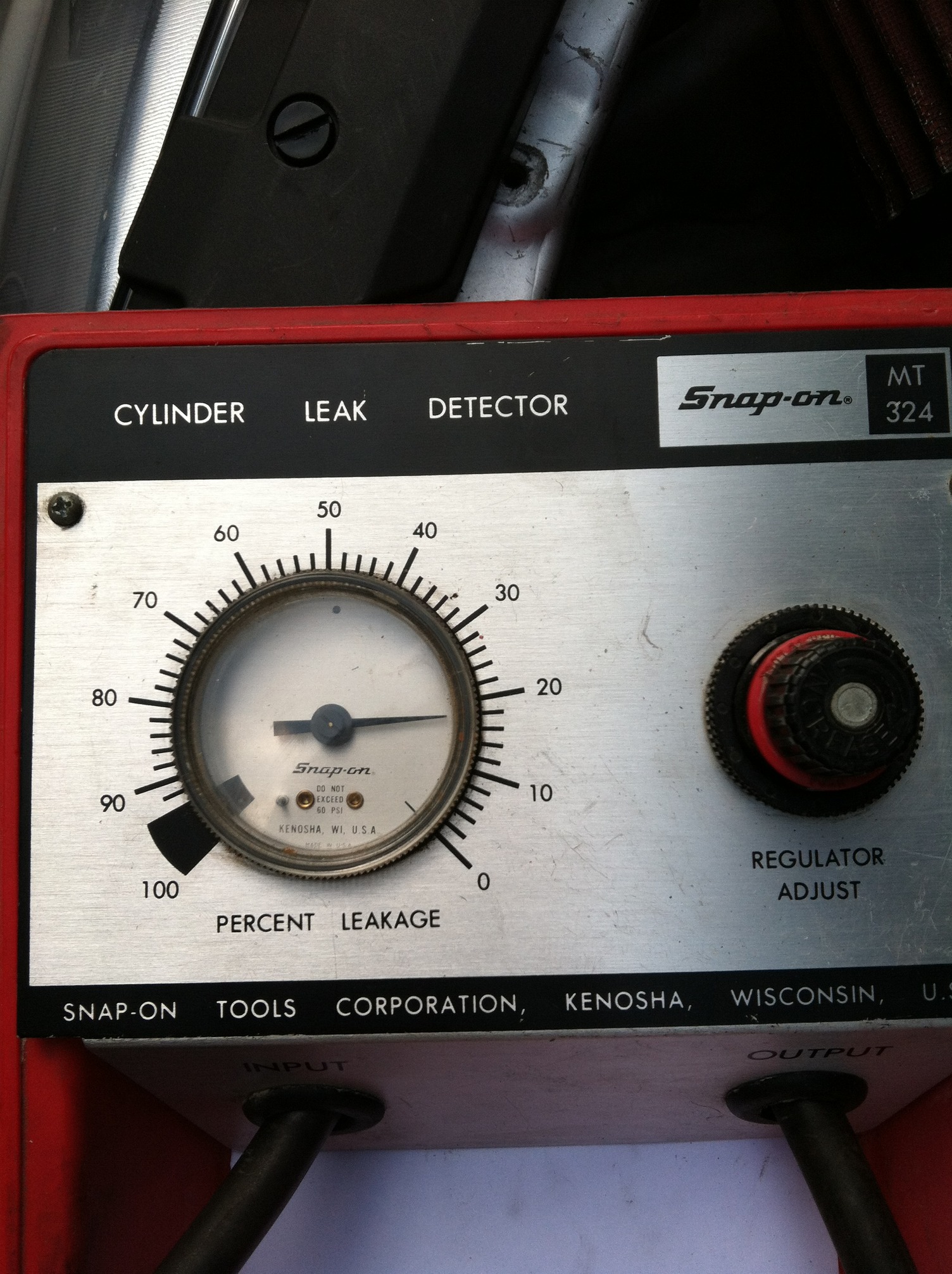

Compression and leak down tester. Then install the leak down test adaptor and connect to the gauge. A leak down test works by putting air pressure into the cylinder and the gauge measures the amount of pressure drop or leakage in the cylinder. It consists of a calibrated pressure gauge and a pressure regulator and adapters to connect it to the spark plug hole. Please share dannysengineportal news. Finally a cylinder leak down tester relies on an external supply of compressed air. First you must remove the spark plug then set the cylinder that you wish to test to tdc compression top dead center of the compression stroke.
An engine leakdown test is a compression test in reverse. Compression testing is a crude form of leak down testing which also includes effects due to compression ratio valve timing cranking speed and other factors. A compression test uses the engine turning to generate the compression in the cylinder for the compression stroke in which both intake and exhaust valves are closed. A leak down tester relies on an external supply of compressed air. A leak down test is performed with a special gauge and manifold set. Pressurized air is supplied to each cylinder and in moments displays a rate of leakage measure from 0 to 100.
A compression tester is a stand alone tool that relies on the engines compression to build pressure in the cylinder. Amazons choice for compression leak down tester cheesea new heavy tu 21 cylinder leakage leak detector engine compression tester gauges set 39 out of 5 stars 35. Compressed air or nitrogen is fed into the gauge and the gauge is calibrated against a zero reference no air leakage. Compression tests should normally be done with all spark plugs removed to maximize cranking speed. Both tools are designed to measure cylinder pressure in order to highlight and diagnose engine problems. You cant use a leak down tester without an air compressor or nitrogen tank.
This cylinder leak down tester gauges leak down tests more accurately than standard compression tests. If you stopped reading right now a novice might choose a compression tester. A compression tester is a stand alone tool that relies on the engines compression to build pressure in the cylinder. The regular engine compression test uses a single gauge and measures the maximum instantaneous compression built by that cylinder. The compression tester is the more common of the two and you can usually rent one at your local auto parts stores loan a tool program. The leakdown tester is less common and you need to get a.
